4x8 lean to shed plans with window

4x8 Lean To Shed Window
sku (build4x8-LTW)

Emailed Plans: $14.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $19.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Version of Plansbuy now button
Buy POSTAL-MAILED Versionbuy now button

How To Build A Shed eBook included with every shed plans purchase.

Instant download - The shed plans are emailed to you so you can start immediately.

Materials List - Easily get bids

Easy To Build From - Professionally drawn. See example below.



More images of the 4x8 Lean To Shed Plans With Small Window

4x8 Lean To Shed Plans with window End View

4x8 Lean To Shed Plans End View

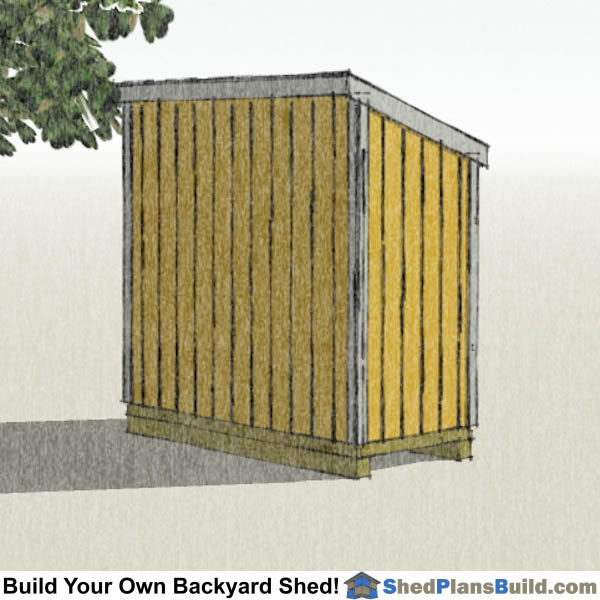

4x8 Lean To Shed Plans with window Left Rear

4x8 Lean To Shed Plans Left Rear

4x8 Lean To Shed Plans with window Right Rear

4x8 Lean To Shed Plans Right Rear

4x8 Lean To Shed Plans with window Right

4x8 Lean To Shed Plans Right

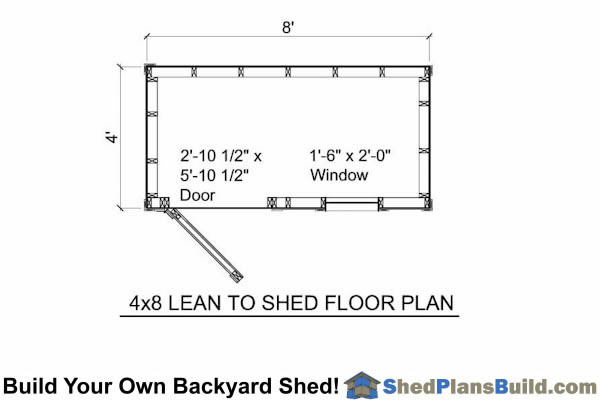

4x8 Lean To Shed Floor Plan

4x8 Lean To Shed with window Floor Plan

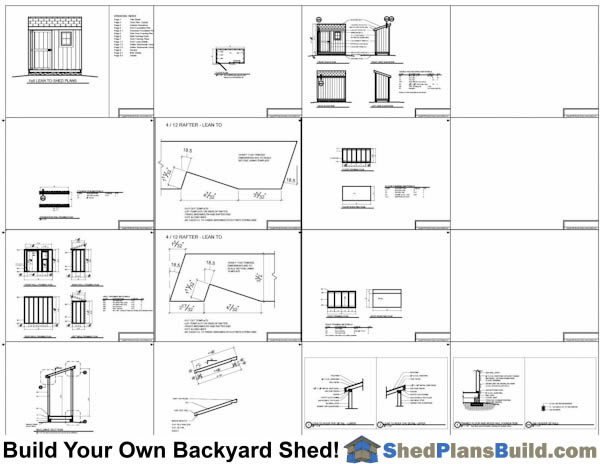

4x8 Lean To Shed Plans With Window Example:

4x8 Lean To Shed Plans with window Example

The 4x8 Lean To Shed Plan With Window

The 4x8 lean to shed with a window on the front is a great way to build a small shed that looks great in your yard or garden. The simple lean to shed roof design makes the shed construction a little easier than a gable roof.

The home built door is a 2'-10 1/2" x 5'-10 1/2". The shed door plans show you how to build the door.

4x8 Lean To Shed Plans Include The Following:

  • Materials List: The shed plans with a complete materials list that is broken down by parts of the shed.
  • 5 Foundations: The shed plans include plans for a wood rail foundation, concrete slab, poured pier, concrete block pier, treated wood on crushed gravel.
  • Floor: 2x6 floor joists with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is drawn to 7'-7" with the option to use 92 5/8" framing studs which make an 8'-1" wall if you want a taller wall.
  • Door: Home Built Door
    • Double Door Size - 2' 10 1/2" x 5'-10 1/2" door plans included
  • Siding: T-111 exterior siding. Other sidings such as vinyl or cement based sidings may be used.
  • Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
  • Roof Pitch: 4/12, this means that for every 10 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: 12" on the sides and 12" on the front and back.
  • Roofing: 25 year asphalt shingles.
  • Windows: The window is a 1'-6" x 1'-6". The window can be left off or the size changed.
  • Trim: 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
