Shed Plans Examples
These are examples of the different types of sheets you will receive when ordering shed plans from ShedPlansBuild.com . Every shed design is different from each other but a typical set of plans consists of the following:
- 1- Title Sheet
- 2- Floor Plan
- 3- Exterior Elevations (including any alternate elevations that the plan may have)
- 4- Foundation Plans
- 5- Floor Framing Plans
- 6- Wall Framing Plans
- 7- Roof Framing Plans
- 7.1- Roof Truss or Rafter Plans
- 7.2- Roof Rafter Angle Templates
- 7.3- Roof Sheeting Plans
- 8- Building Section
- 8.1- Shed Building Details
FREE Backyard Shed Materials List (Check the page of the shed you want to build to find and download its materials list)

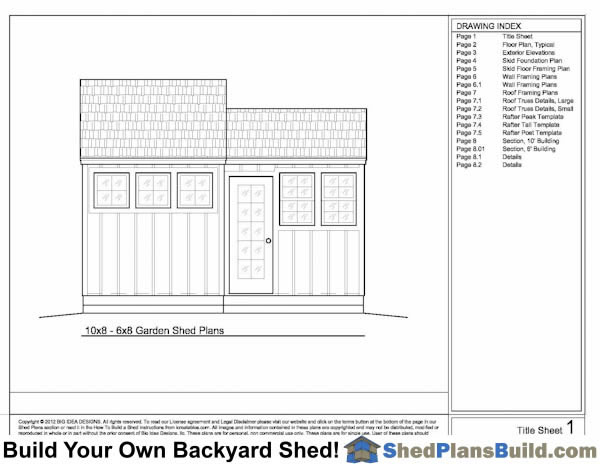

Shed Plans Title Sheet

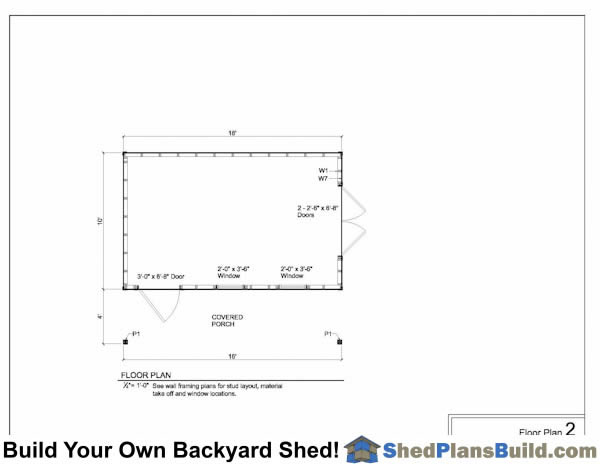

Shed Floor Plans

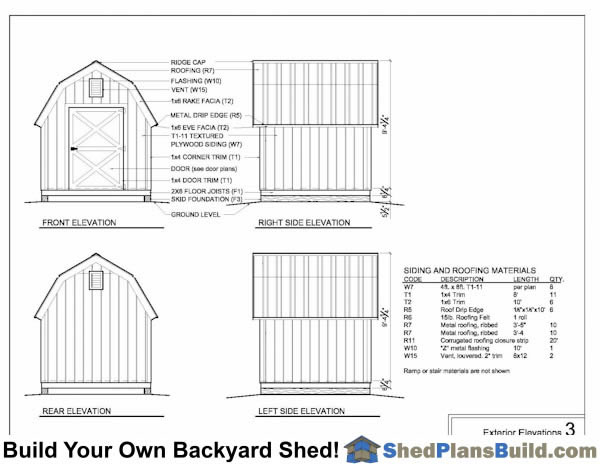

Shed Plans Exterior Elevations
Shed Foundation Plans

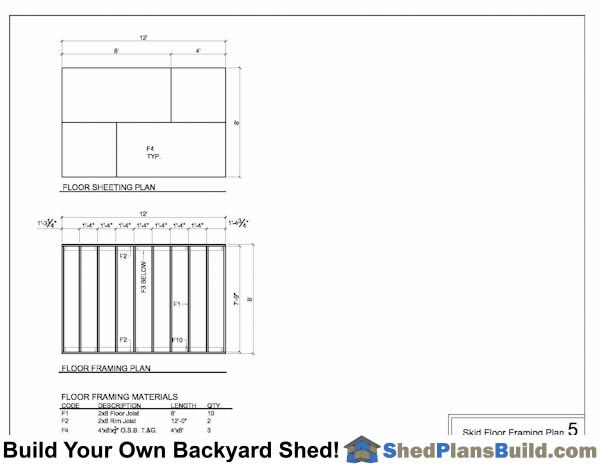

Shed Floor Framing Plans

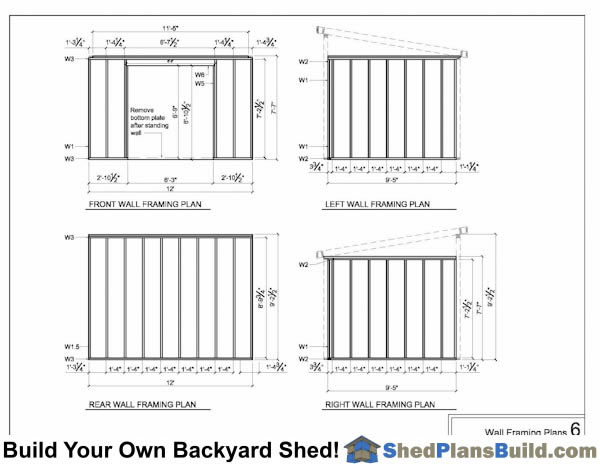

Wall Framing Plans For Shed

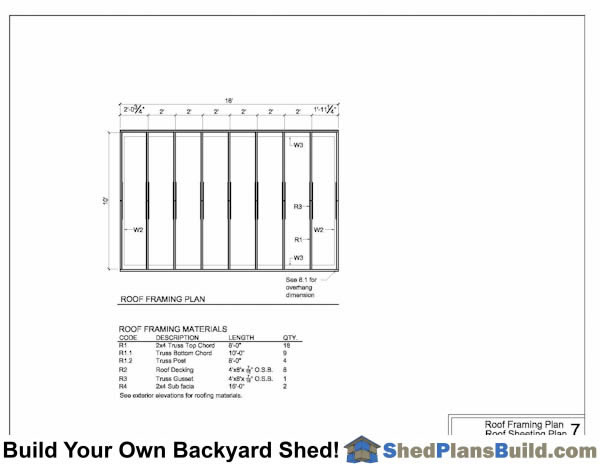

Roof Framing Plans For Shed

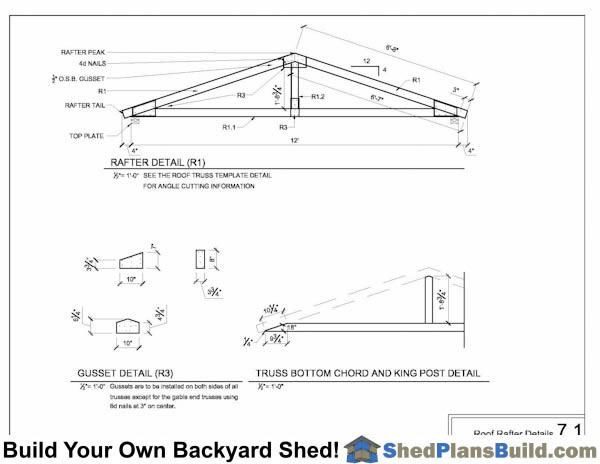

Roof Rafter Plans For Shed

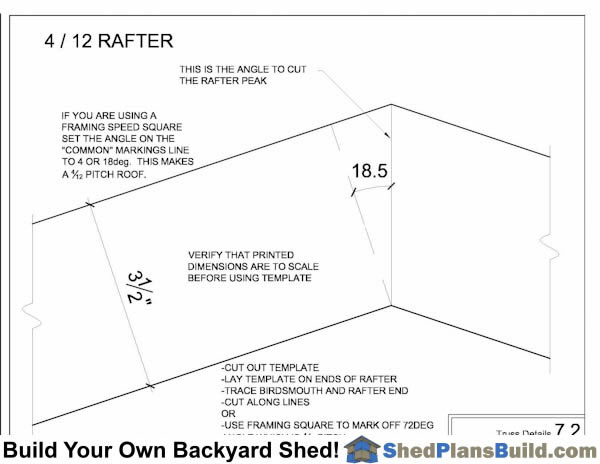

Roof Rafter Angle Cut For 4 in 12 Rafters

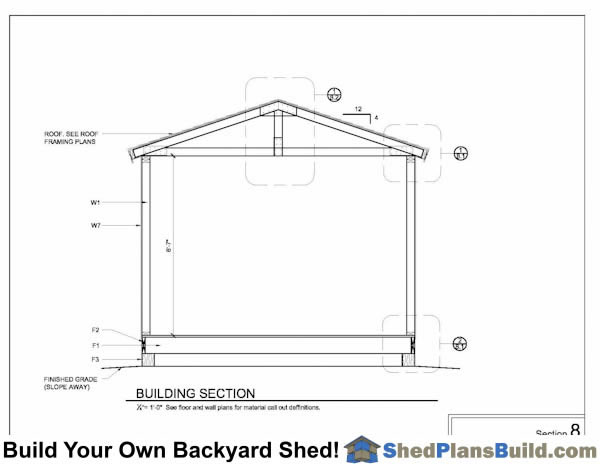

Building Section For Storage Shed Plans

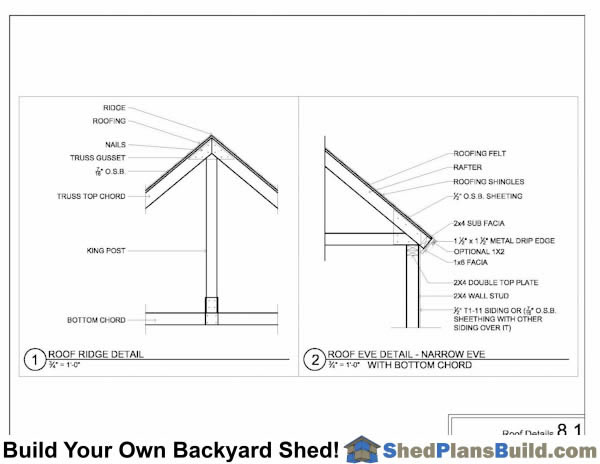

Construction Details For Storage Shed Build

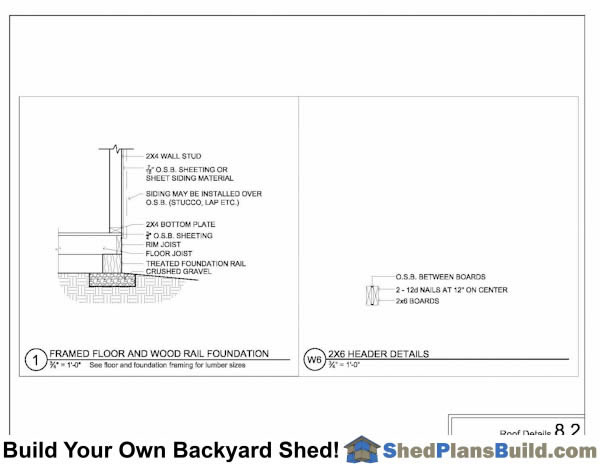

Foundation Details Shed Plans
