4x8 Lean To Shed Plan
sku (shed4x8-LeanTo)

Emailed Plans: $14.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $19.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Version of Plansbuy now button
Buy POSTAL-MAILED Versionbuy now button

How To Build A Shed eBook included with every shed plans purchase.

Instant download - The shed plans are emailed to you so you can start immediately.

Materials List - Easily get bids

Easy To Build From - Professionally drawn. See example below.


More images of the 4x8 Lean To Shed Plans

Shed Plans End View

4x8 Lean To Shed Plans End View

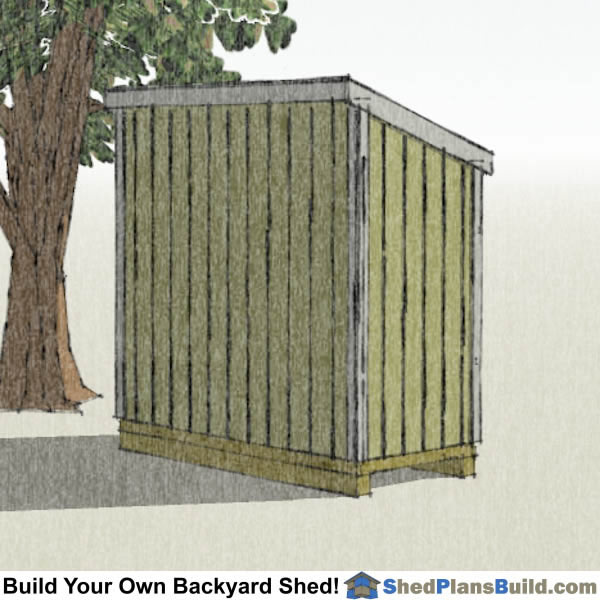

Shed Plans Left Rear

4x8 Lean To Shed Plans Left Rear

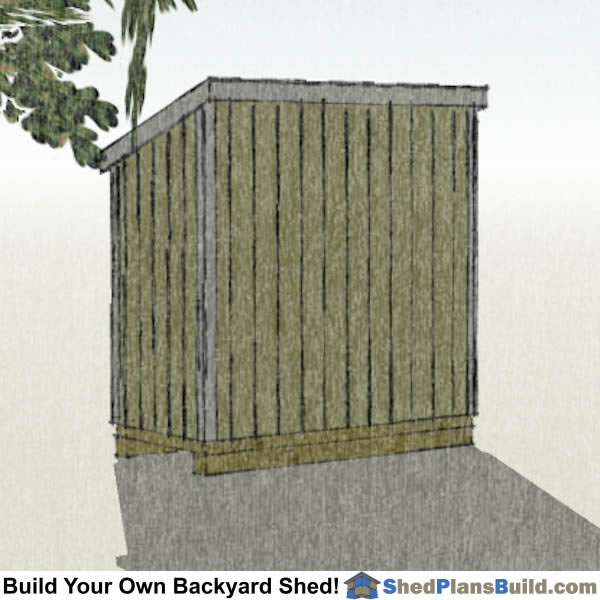

Shed Plans Right Rear

4x8 Lean To Shed Plans Right Rear

Shed Plans Right

4x8 Lean To Shed Plans Right

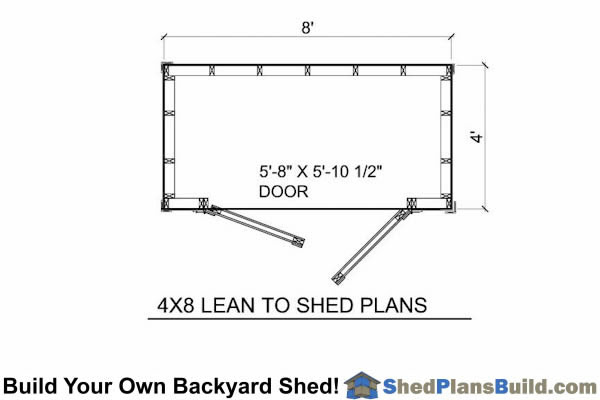

4x8 Lean To Shed Floor Plan

Shed Floor Plans

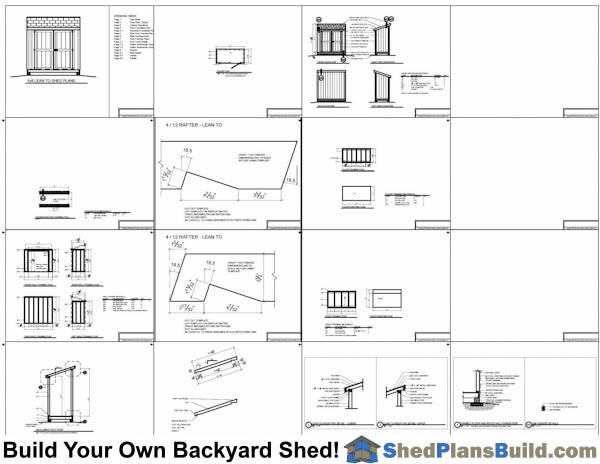

4x8 Lean To Shed Plans Example:

Shed Plans Example

The 4x8 Lean To Shed Plan

The 4x8 lean to shed is popular because it is small enough to not take up much space but still has plenty of room to store things like a lawn mower and bicycles.

The large double door allows you to have easy access to the interior of the shed. Door building plans are included with the shed plans.

4x8 Lean To Shed Plans Include The Following:

  • Materials List: The shed plans with a complete materials list that is broken down by parts of the shed.
  • 5 Foundations: The shed plans include plans for a wood rail foundation, concrete slab, poured pier, concrete block pier, treated wood on crushed gravel.
  • Floor: 2x6 floor joists with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is drawn to 7'-7" with the option to use 92 5/8" framing studs which make an 8'-1" wall if you want a taller wall.
  • Door: Home Built Door
    • Double Door Size - 5'-8" x 5'-10 1/2" door plans included
  • Siding: T-111 exterior siding. Other sidings such as vinyl or cement based sidings may be used.
  • Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
  • Roof Pitch: 4/12, this means that for every 10 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: 12" on the sides and 12" on the front and back.
  • Roofing: 25 year asphalt shingles.
  • Windows: No windows shown on the plans but the How To manual shows how to build window openings.
  • Trim: 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
