12x20 Gambrel Shed Plan
sku (build12x20-GB)

Emailed Plans: $39.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $44.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Version of Plansbuy now button
Buy POSTAL-MAILED Versionbuy now button

How To Build A Shed eBook included with every shed plans purchase.

Instant download - The shed plans are emailed to you so you can start immediately.

Materials List - Easily get bids

Easy To Build From - Professionally drawn. See example below.



More images of the 12x20 Gambrel Shed Plans

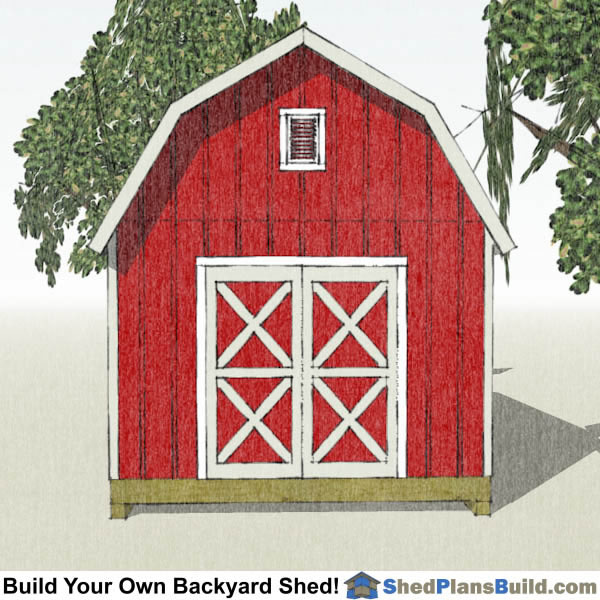

12x20 Gambrel Shed Plans End View

12x20 Gambrel Shed Plans End View

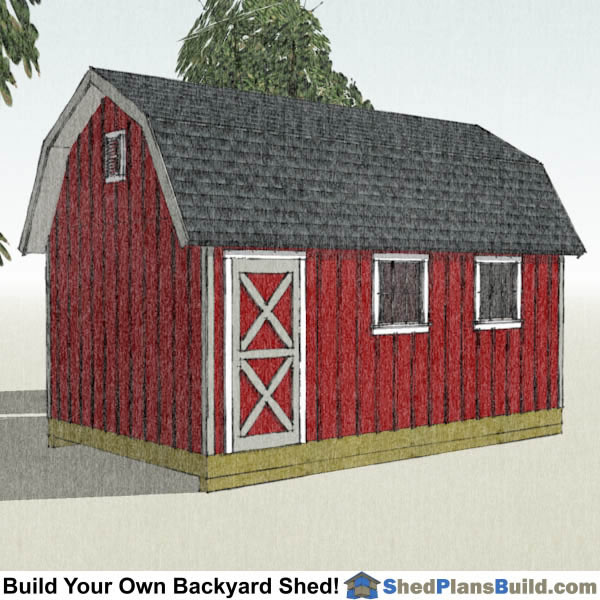

12x20 Gambrel Shed Plans Left Rear

12x20 Gambrel Shed Plans Left Rear

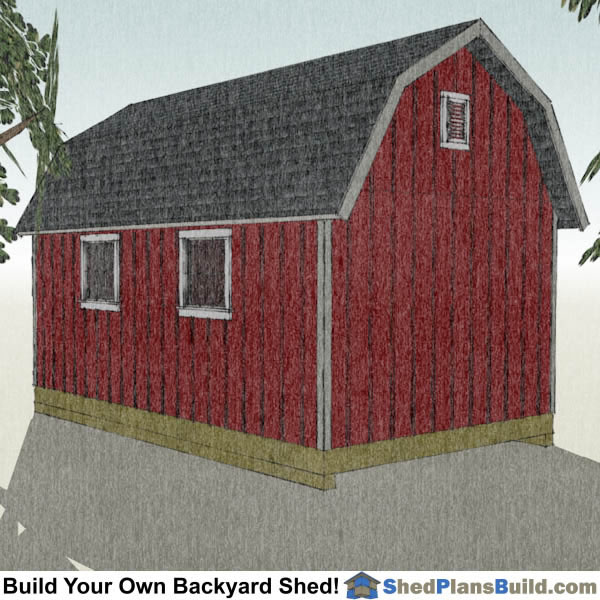

12x20 Gambrel Shed Plans Right Rear

12x20 Gambrel Shed Plans Right Rear

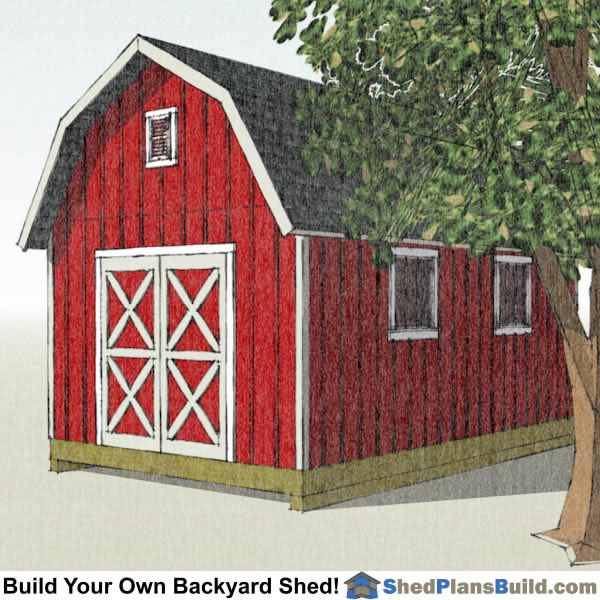

12x20 Gambrel Shed Plans Right

12x20 Gambrel Shed Plans Right

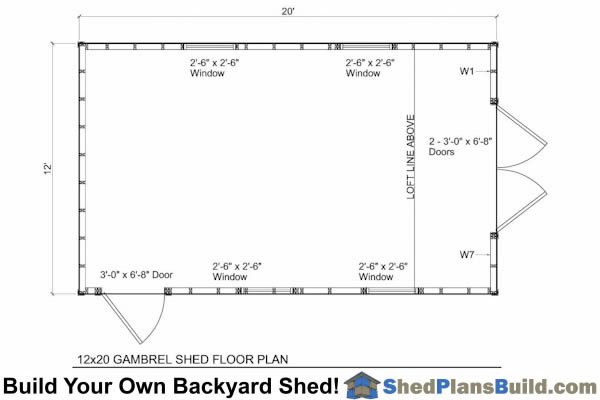

12x20 Gambrel Shed Floor Plan

12x20 Gambrel Shed Floor Plan

12x20 Gambrel Shed Plans Example:

12x20 Garden Shed Plans Example:

A Large Gambrel Shed Plan

The 12x20 Gambrel shed is an amazing shed design that is designed for a large work or storage space. The larger space in the roof is for more than just looks. The roof is designed to increase the storage space inside the shed. The larger volume roof isn't just for looks, it is designed to make a large amount of storage space. The loft adds an additional 190 square feet of storage space with an average of about 4 feet of headroom.

The shed has a 6' wide double door on the gable end and a 3068 man door on the longer shed wall. There are two windows are on each of the 20' long shed walls.

Roof overhangs for the 12x20 gambrel barn shed are 6 inches on the eve walls and 12 inches on the gable walls.

Door plans are included with the shed plans if you want to build your own shed doors.

12x16 Gambrel Shed Plans Include The Following:

  • Materials List: The shed plans come with a complete materials list that is broken down by parts of the shed.
  • 5 Foundations: The shed plans include plans for a wood rail foundation, concrete slab, poured pier, concrete block pier, treated wood on crushed gravel.
  • Floor: 2x6 floor joists with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is drawn to 7'-7" with the option to use 92 5/8" framing studs which make an 8'-1" wall if you want a taller wall.
  • Door: Home Built Door
    • Double End Door Size - 6'-0" x 6'-8"
    • Side Door - 3'-0" x 6'-8"
  • Siding: T-111 exterior siding. Other sidings such as vinyl or cement based sidings may be used.
  • Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
  • Roof Pitch: 7/12 and 12/7
  • Roof Overhang: 6" on the eves and 12" on the gable ends
  • Roofing: 25 year asphalt shingles.
  • Windows: The shed has three windows. The three windows on the side walls are 2036 (2'-6" x 2'-6").
  • Trim: 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
