12x16 garage storage shed plans

12x16 Garage Door Shed Plan
sku (build12x16-GD)

Emailed Plans: $19.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $24.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Version of Plansbuy now button
Buy POSTAL-MAILED Versionbuy now button

How To Build A Shed eBook included with every shed plans purchase.

Instant download - The shed plans are emailed to you so you can start immediately.

Materials List - Easily get bids

Easy To Build From - Professionally drawn. See example below.



More images of the 12x16 Garden Shed Plans

12x16 garage Shed Plans End View

12x16 Garden Shed Plans End View

Garage Shed Plans Left Rear

12x16 Garden Shed Plans Left Rear

Garage Shed Plans Right Rear

12x16 Garden Shed Plans Right Rear

Garage Shed Plans Right

12x16 Garden Shed Plans Right

12x16 Garden Shed Floor Plan

Garage Shed Floor Plans

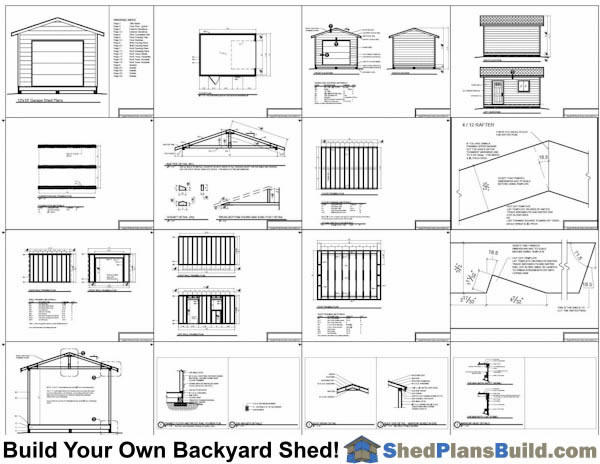

12x16 Garden Shed Plans Example:

Garage Storage Shed Plans Example

Build A Shed With A Garage Door

The garage door storage shed plan is a great shed for storing larger items or creating a workshop with plenty of access. It has an 8' wide overhead garage door that will allow you to move even the largest tools and projects into the shed. A overhead panel door or roll up door can be installed on the doorway.

The 16' shed wall has a smaller man door and window on the side of the shed.The roof overhangs are 12" on all sides of the shed and the roof pitch is 4 in 12.

Door plans are included for the man door.

12x16 Garage Shed Plans Include The Following:

  • Materials List: The shed plans come with a complete materials list that is broken down by parts of the shed.
  • 5 Foundations: The shed plans include plans for a wood rail foundation, concrete slab, poured pier, concrete block pier, treated wood on crushed gravel.
  • Floor: 2x6 floor joists with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is drawn to 8'-1" with the option to use 92 5/8" framing studs which make an 8'-1" wall if you want a taller wall.
  • Door: Home Built Door
    • Overhead Door Size - 8'-0" Wide by 7'-0" tall
    • Side Door - 3'-0" x 6'-8"
  • Siding: T-111 exterior siding. Other sidings such as vinyl or cement based sidings may be used.
  • Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
  • Roof Pitch: 4/12, this means that for every 4 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: 12" on the sides and 12" on the front and back.
  • Roofing: 25 year asphalt shingles.
  • Windows: The shed has one window. 3030 3'-0" x3'-0").
  • Trim: 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
